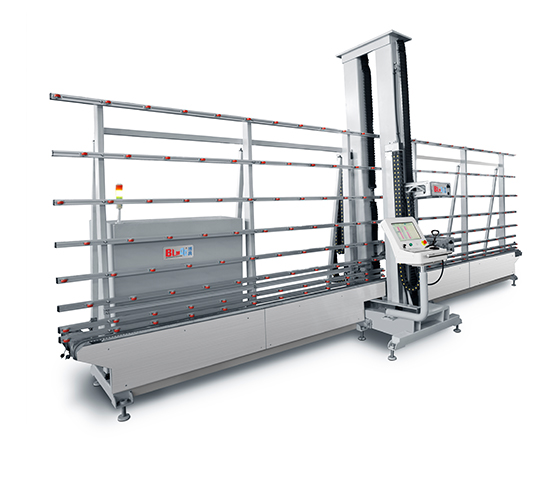

Vertical Glass Drilling Machine A72

Product Features:

This equipment is used for processing glass such as railings, curtain walls, door glass, furniture, and shower rooms;
This device can be used standalone or connected to vertical edge grinders, vertical cleaning machines, etc. to form an automated production line;
The operating interface of this device is a computer operating interface;
Can read information through online barcode and automatically divide/drill holes;
Can be integrated with ERP, online drawing and navigation;

Online Message Get a Quote

Product overview

This equipment is suitable for drilling and processing large-sized glass. With the spatial advantage of its vertical structure and the high precision of its CNC system, it provides an efficient and stable drilling solution for the glass deep processing industry.

Product parameters

Processing range: X1:0-4000mm; Y1:40-2100; Y2:440-2500mm

Drilling diameter: Φ6-Φ50mm

Glass thickness: 4-19mm

The speed of screw propulsion: 0-3mm/s

The height of the table:900+/-20mm

Overall size:7300*3800*1800mm

The max glass size:4000mm*2500mm

The min glass size:1000mm*300mm

Application Areas & Scenarios
