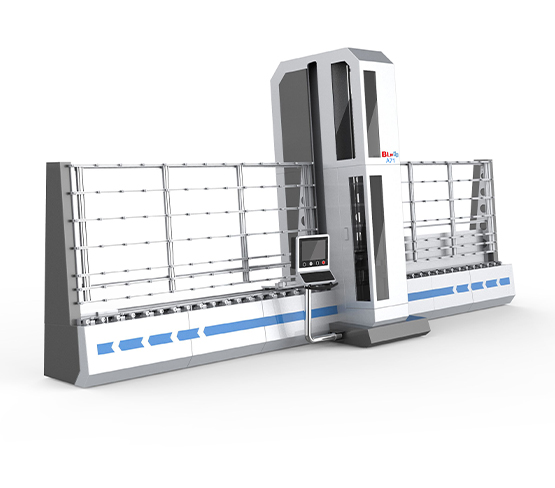

Vertical Glass Drilling Machine A71
Product Features:
1.This equipment is used for processing glass such as railings, curtain walls, door glass, furniture, and shower rooms;
2.This device can be used standalone or connected to vertical edge grinders, vertical cleaning machines, etc. to form an automated production line;
3.The operating interface of this device is a computer operating interface;
4.Can read information through online barcode and automatically divide/drill holes;
5.Can be integrated with ERP, online drawing and navigation;
6.A milling cutter function can be optionally configured to realize the combination of drilling, milling and polishing.
Product overview

This equipment integrates glass drilling, milling and polishing functions. It can be equipped with 6 to 8 tools and adopts a vertical structure design. It integrates an automated conveying system, a CNC drilling system and an intelligent control module. It is suitable for drilling large-sized glass. With the spatial advantage of the vertical structure and the high precision of the CNC system, it provides an efficient and stable drilling solution for the glass deep processing industry.

Product parameters

Processing range: X1:0-2500mm; Y1:0-2200; Y2:0-2500mm

Drilling diameter: Φ6-Φ50mm

Glass thickness: 4-19mm

The speed of screw propulsion: 0-3mm/s

The height of the table:900+/-20mm

Overall size:8300*3800*1800mm

The max glass size:3200mm*2500mm

The min glass size:1000mm*300mm

Application Areas & Scenarios
