Home > product > Shower Glass Drilling Machine A31D

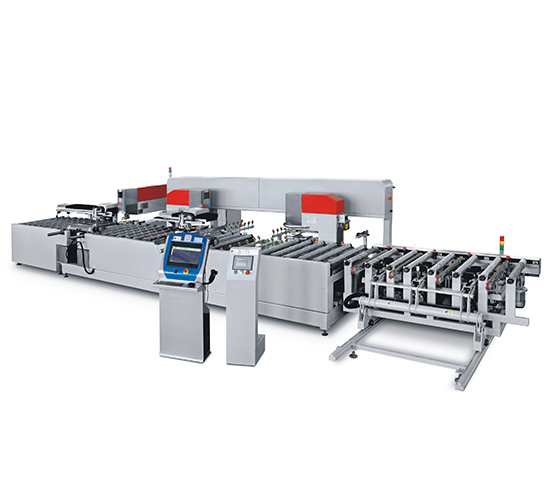

Shower Glass Drilling Machine A31D
Product Features:
1.Realizes smooth loading, conveying and unloading of glass through multiple sets of rollers, ensuring the continuity of the processing flow.
2.Equipped with a high-precision drilling mechanism, it can accurately complete glass drilling operations of different specifications and positions according to programming instructions, meeting diverse processing needs.
3.Equipped with a human-machine interface, it can realize flexible setting of processing parameters, program storage and calling, and also has real-time monitoring function to ensure the accuracy and stability of the drilling process.
4.This equipment can be used as a standalone machine or connected with glass deep processing equipment such as loading and unloading tables to form an automated production line.
5.The operation interface of this equipment can be optionally equipped with a touch screen or computer operation interface.
6.It can read information through online barcode scanning, and automatically perform hole distribution and drilling.
7.It can be connected to ERP systems, and support online drawing
Product overview

This device is designed specifically for the drilling process of shower room glass, integrating automated conveying, CNC drilling system, and intelligent control module. Its core advantage lies in its high degree of automation and accurate drilling accuracy, which greatly improves the production efficiency and processing quality of glass drilling, and is widely used in the drilling and processing of shower room glass.

Product parameters

Processing range: X1:0-500mm; X2:0-500mm; X3:500-1500mm;Y1/Y2:0-1500mm

Drilling diameter: Φ6-Φ50mm

Glass thickness: 4-19mm

The speed of screw propulsion: 0-3mm/s

The height of the table:900+/-20mm

Overall size:8600*4600*2200mm

The max glass size:2500mm*1500mm

The min glass size:1600mm*300mm

Application Areas & Scenarios
