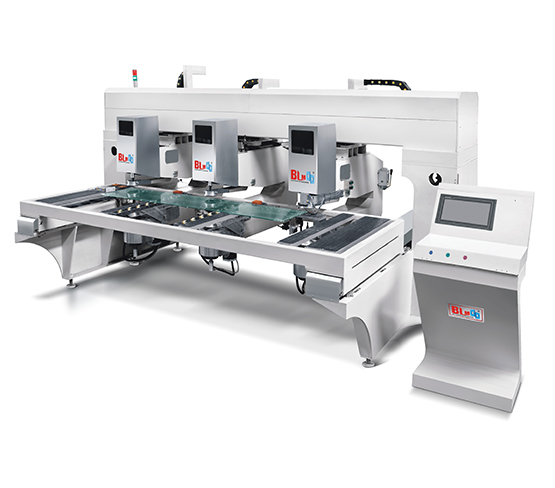

Shower Glass Drilling Machine A23
Product Features:
1.It can be used as a standalone unit or combined with a robotic arm to form a production line.
2.It can be equipped with three types of drill bits of different diameters, and the three sets of machine heads can perform processing simultaneously.
3.The machine features a touchscreen operation interface for easy control.
4.The platform is made of aluminum alloy, which offers water-resistant and corrosion-resistant properties.
5.The aluminum alloy tabletop can be manually adjusted according to the distribution of glass holes.
Product overview

Shower Glass Drilling Machine A23,It features a three spindles structure, allowing simultaneous multi-station drilling operations, which greatly improves production efficiency. Equipped with a numerical control system (with an operation console and touch screen on the right side), it can achieve high-precision automated drilling, ensuring the accuracy and consistency of hole positions.

This machine is mainly used for drilling processing in fields such as, household appliance glass, and automotive glass. With its automated and high-precision characteristics, it meets the efficient and precise requirements of the glass processing industry for the drilling process, helping enterprises achieve intelligent production upgrading in the glass drilling process.

Product parameters

Processing range: X1:0-300mm; X3:750-1200mm; X2:1650-2200mm; Y:0-900mm

Drilling diameter: Φ6-Φ50mm

Glass thickness: 4-19mm

The speed of screw propulsion: 0-3mm/s

Overall size: 3900*2900*1900mm

The height of the table:900+/-20mm
