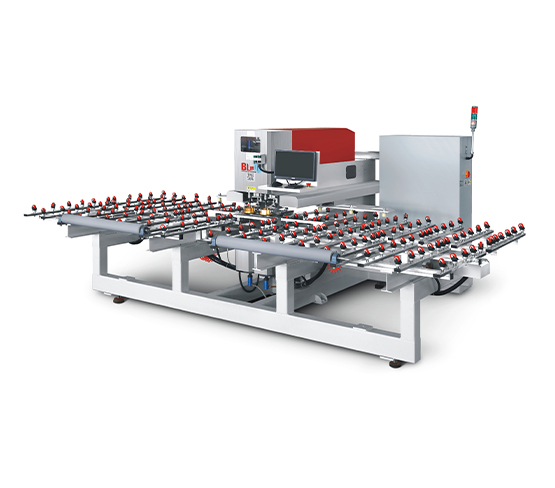

Shower Glass Drilling Machine A11B
Product Features:
This device is designed for standalone use, with automatic positioning and manual movement of the glass to the positioning block;
The operating interface of this device is an industrial computer and can be used for online drawing;
Can match barcode scanner, read QR codes and barcodes, and connect to factory ERP;
Can install two different diameters of drill bits; The minimum center distance between two drill bits is 170mm, but they cannot be machined simultaneously;
The platform is composed of 304 stainless steel pipes, universal wheels, and rubber rollers;
Product overview

Manual Glass Drilling Machine A11B, equipped with a numerical control operating system (a console with a touch screen and operation buttons) and adopts a universal wheel and roller conveying platform design. It realizes the flexible conveying and precise positioning of glass through a large number of universal wheels and roller.

Product parameters

Processing range: X1:0-1500mm; X2:0-750mm;Y1:0-1100mm

Drilling diameter: Φ6-Φ50mm

Glass thickness: 4-19mm

The speed of screw propulsion: 0-3mm/s

The height of the table:900+/-20mm

Overall size:4380*2800*1600mm
