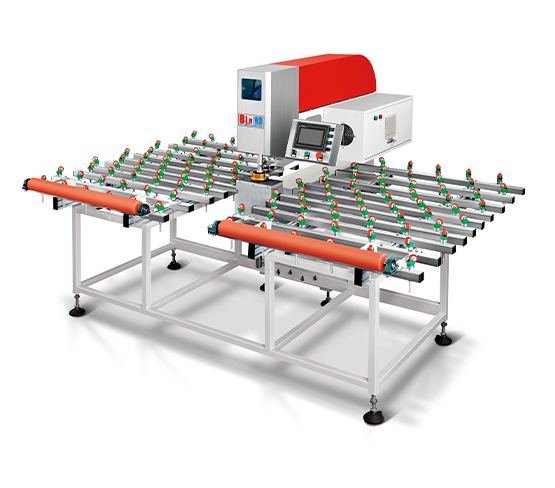

Manual Glass Drilling Machine A11C

Product Features:

1.It has a wide range of applications.
2.It is used as a standalone machine. Hole drawing and glass moving are both manual operations.
3.It features a touchscreen operation interface.
4.The platform is composed of 304 stainless steel pipes, universal wheels, and rubber rollers.

Online Message Get a Quote

Product overview

Manual Glass Drilling Machine A11C, equipped with a numerical control operating system (a console with a touch screen and operation buttons) and adopts a universal wheel and roller conveying platform design. It realizes the flexible conveying and precise positioning of glass through a large number of universal wheels and roller.

Product parameters

Drilling diameter: Φ6-Φ50mm

Glass thickness: 4-19mm

The speed of screw propulsion: 0-3mm/s

Overall size: 2700*2000*1700mm

The height of the table:900+/-20mm
