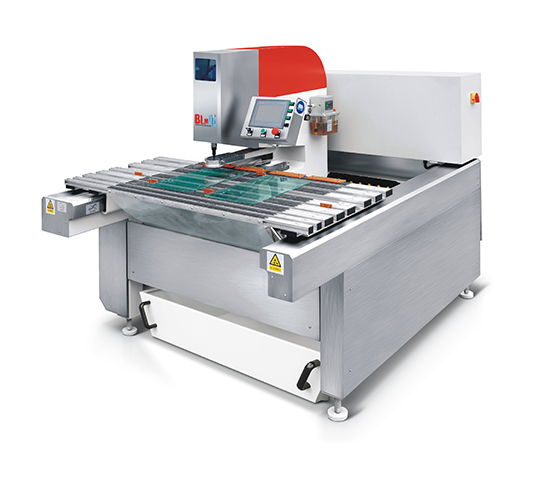

Home Appliances Electronic Glass Drilling Machine A15
Product Features:
1.It is suitable for processing various small glass pieces and has a wide range of applications.
2.It can be used as a standalone machine; it can be combined with a manipulator to form a production line.
3.It features a touchscreen operation interface.
4.The Y-axis platform movement is driven by a single drive, with a ball screw controlling the movement accuracy; it supports dual-station processing.
5.The platform is made of aluminum alloy, which has waterproof and corrosion-resistant properties.
6.The aluminum alloy tabletop can be manually adjusted according to the distribution of glass holes.
Product overview

Home Appliances Electronic Glass Drilling Machine A15, It adopts a single-spindle structure and is equipped with a numerical control operating system (a console with a touch screen and operation buttons), enabling automated and high-precision glass drilling operations to ensure the accuracy and consistency of hole positions. It is suitable for drilling processing needs in fields such as household appliance glass, and automotive glass. With its precise and efficient characteristics, it helps glass processing enterprises realize intelligent production in the drilling process.

Product parameters

Processing range: X:0-800mm; Y:0-500mm

Drilling diameter: Φ6-Φ50mm

Glass thickness: 4-19mm

The speed of screw propulsion: 0-3mm/s

Overall size: 2000*1600*1700mm

The height of the table:900+/-20mm

Application Areas & Scenarios
