Home > product > Glass Washing and Drying Machine for Low-e Glass

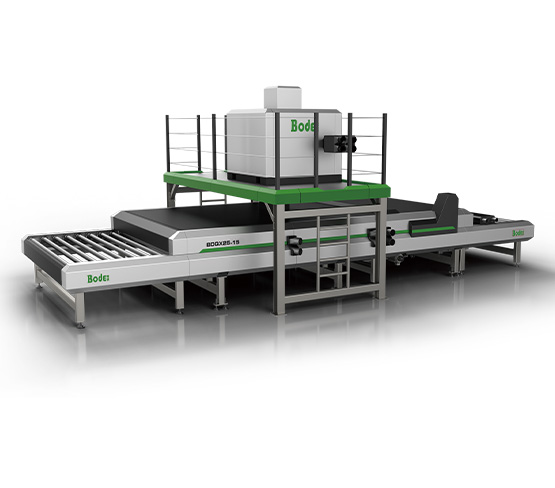

Glass Washing and Drying Machine for Low-e Glass
Product Features:
Multi scenario adaptability
Intelligent cleaning process
Efficient drying, high cleanliness
Product Overview

It is an industrial equipment designed specifically for the deep processing of flat glass in the fields of architecture, electronics, home appliances, furniture, photovoltaics, etc. It is mainly used to remove stains, oil stains, dust and other pollutants on the surface of glass, while protecting the glass coating layer (such as Low-E glass) to ensure the quality of subsequent processing (such as tempering, screen printing, coating).

Product Parameters
Ltem Speed Overall Size Voltage Glass Max Size Glass Min Size
(Diagonal Entry)
Glass Thickness
QX1.6L 0.5-8m/min 5500*3450*900±20 19.5kw+18kw(heating) 1600mm(W) 300*300mm 3-19mm
QX2.0L 0.5-8m/min 5500*3850*900±20 28.5kw+18kw(heating) 2000mm(W) 300*300mm 3-19mm
QX2.5L 0.5-8m/min 7710*3600*900±20 28.5kw+18kw(heating) 2500mm(W) 300*450mm 3-19mm
QX3.0L 0.5-8m/min 7710*4100*900±20 36.85kw+18kw(heating) 3000mm(W) 300*450mm 3-19mm
QX3.3L 0.5-8m/min 8750*4400*900±20 46.5kw+18kw(heating) 3300mm(W) 450*450mm 3-19mm
QX3.6L 0.5-8m/min 9710*4700*900±20 53.5kw+24kw(heating) 3600mm(W) 450*450mm 3-19mm
