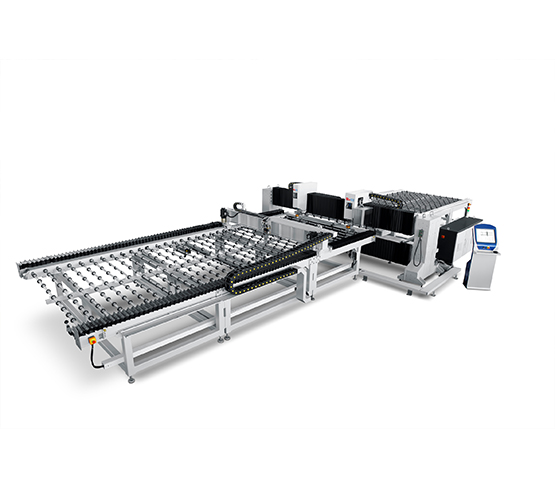

Glass Drilling & Milling Machine & Polishing Machine A92 (Spindle1+1)

Product Features:

This device is suitable for processing various types of building glass and shower room glass, with a wide range of applications;
This device can be used standalone or connected to glass deep processing equipment such as upper and lower stages to form an automated production line;
This device has an optional touch screen/computer interface for operation;
Can read information through online barcode and automatically divide/drill holes;
Can be integrated with ERP, online drawing and navigation;
Optional milling cutter function, realizing the combination of drilling, milling and polishing.

Online Message Get a Quote

Product overview

Glass Drilling & Milling Machine & Polishing Machine A92 (Spindle:1+1)

This equipment integrates glass drilling, milling, and polishing functions, and is suitable for multifunctional deep processing of building glass, decorative glass, etc. With its integrated processing capability, it greatly improves the efficiency and process diversity of glass processing, solves the problem of large glass processing, and is the preferred equipment for glass deep processing enterprises to achieve multi process integrated production.

Product parameters

Processing range: X1:0-6000mm; Y1/Y2:0-2500mm

Drilling diameter: Φ6-Φ50mm

Glass thickness: 4-19mm

The speed of screw propulsion: 0-3mm/s

The height of the table:900+/-20mm

Overall size:13600*5700*1800mm

The max glass size:6000mm*2500mm

The min glass size:1200mm*300mm
